Normalised Eddy Lifetimes¶
Example from Evan Mason
from matplotlib import pyplot as plt
from numba import njit
from numpy import interp, linspace, zeros
from py_eddy_tracker_sample import get_demo_path
from py_eddy_tracker.observations.tracking import TrackEddiesObservations
@njit(cache=True)
def sum_profile(x_new, y, out):
"""Will sum all interpolated given array"""
out += interp(x_new, linspace(0, 1, y.size), y)
class MyObs(TrackEddiesObservations):
def eddy_norm_lifetime(self, name, nb, factor=1):
"""
:param str,array name: Array or field name
:param int nb: size of output array
"""
y = self.parse_varname(name)
x = linspace(0, 1, nb)
out = zeros(nb, dtype=y.dtype)
nb_track = 0
for i, b0, b1 in self.iter_on("track"):
y_ = y[i]
size_ = y_.size
if size_ == 0:
continue
sum_profile(x, y_, out)
nb_track += 1
return x, out / nb_track * factor
Load atlas¶
kw = dict(include_vars=("speed_radius", "amplitude", "track"))
a = MyObs.load_file(
get_demo_path("eddies_med_adt_allsat_dt2018/Anticyclonic.zarr"), **kw
)
c = MyObs.load_file(get_demo_path("eddies_med_adt_allsat_dt2018/Cyclonic.zarr"), **kw)
nb_max_a = a.nb_obs_by_track.max()
nb_max_c = c.nb_obs_by_track.max()
Compute normalised lifetime¶
# Radius
AC_radius = a.eddy_norm_lifetime("speed_radius", nb=nb_max_a, factor=1e-3)
CC_radius = c.eddy_norm_lifetime("speed_radius", nb=nb_max_c, factor=1e-3)
# Amplitude
AC_amplitude = a.eddy_norm_lifetime("amplitude", nb=nb_max_a, factor=1e2)
CC_amplitude = c.eddy_norm_lifetime("amplitude", nb=nb_max_c, factor=1e2)

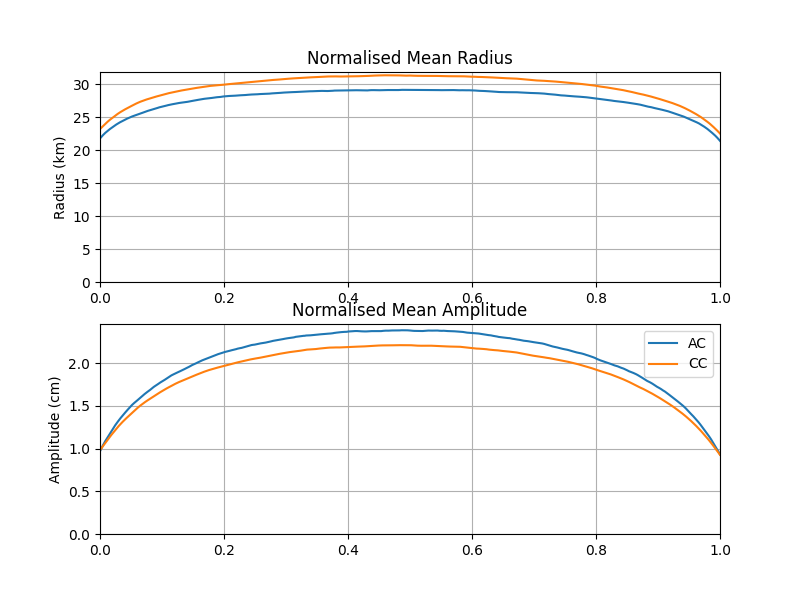

Figure¶
fig, (ax0, ax1) = plt.subplots(nrows=2, figsize=(8, 6))
ax0.set_title("Normalised Mean Radius")
ax0.plot(*AC_radius), ax0.plot(*CC_radius)
ax0.set_ylabel("Radius (km)"), ax0.grid()
ax0.set_xlim(0, 1), ax0.set_ylim(0, None)
ax1.set_title("Normalised Mean Amplitude")
ax1.plot(*AC_amplitude, label="AC"), ax1.plot(*CC_amplitude, label="CC")
ax1.set_ylabel("Amplitude (cm)"), ax1.grid(), ax1.legend()
_ = ax1.set_xlim(0, 1), ax1.set_ylim(0, None)
Total running time of the script: ( 0 minutes 3.913 seconds)
