Groups distributionΒΆ
from matplotlib import pyplot as plt
from numpy import arange, ones, percentile
import py_eddy_tracker_sample
from py_eddy_tracker.observations.tracking import TrackEddiesObservations
Load an experimental med atlas over a period of 26 years (1993-2019)
a = TrackEddiesObservations.load_file(
py_eddy_tracker_sample.get_demo_path(
"eddies_med_adt_allsat_dt2018/Anticyclonic.zarr"
)
)
Group distribution
Function to build stats
def stats_compilation(dataset, groups, field, bins, filter=None):
datas = dict(ref=dataset.bins_stat(field, bins=bins, mask=filter)[1], y=dict())
for k, index in groups.items():
i = dataset.merge_filters(filter, index)
x, datas["y"][k] = dataset.bins_stat(field, bins=bins, mask=i)
datas["x"], datas["bins"] = x, bins
return datas
def plot_stats(ax, bins, x, y, ref, box=False, cmap=None, percentiles=None, **kw):
base, ref = ones(x.shape) * 100.0, ref / 100.0
x = arange(bins.shape[0]).repeat(2)[1:-1] if box else x
y0 = base
if cmap is not None:
cmap, nb_groups = plt.get_cmap(cmap), len(y)
keys = tuple(y.keys())
for i, k in enumerate(keys[::-1]):
y1 = y0 - y[k] / ref
args = (y0.repeat(2), y1.repeat(2)) if box else (y0, y1)
if cmap is not None:
kw["color"] = cmap(1 - i / (nb_groups - 1))
ax.fill_between(x, *args, label=k, **kw)
y0 = y1
if percentiles:
for b in bins:
ax.axvline(b, **percentiles)
Speed radius by track period
stats = stats_compilation(
a, groups, "radius_s", percentile(a.radius_s, bins_percentile)
)
fig = plt.figure()
ax = fig.add_subplot(111)
plot_stats(ax, **stats, cmap="magma", percentiles=dict(color="gray", ls="-.", lw=0.4))
ax.set_xlabel("Speed radius (m)"), ax.set_ylabel("% of class"), ax.set_ylim(0, 100)
ax.grid(), ax.legend()
(None, <matplotlib.legend.Legend object at 0x7f6c30e78ac0>)

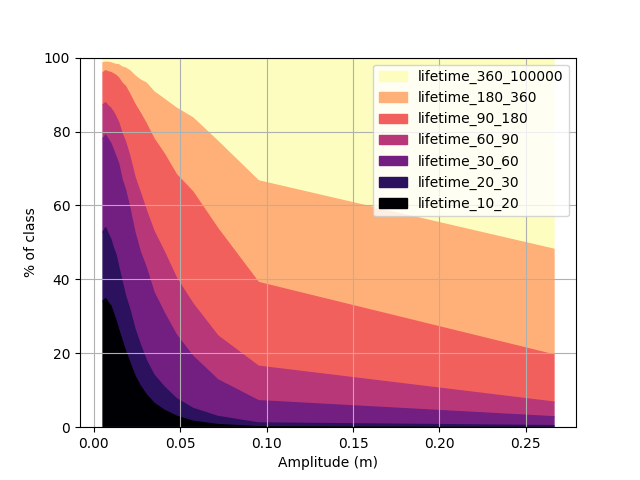

Amplitude by track period
stats = stats_compilation(
a, groups, "amplitude", percentile(a.amplitude, bins_percentile)
)
fig = plt.figure()
ax = fig.add_subplot(111)
plot_stats(ax, **stats, cmap="magma")
ax.set_xlabel("Amplitude (m)"), ax.set_ylabel("% of class"), ax.set_ylim(0, 100)
ax.grid(), ax.legend()
(None, <matplotlib.legend.Legend object at 0x7f6c30cf5db0>)
